Integrated Tube Cutting Tube End Forming Bending and Cutting Machine Send to Indonesia

Product Description

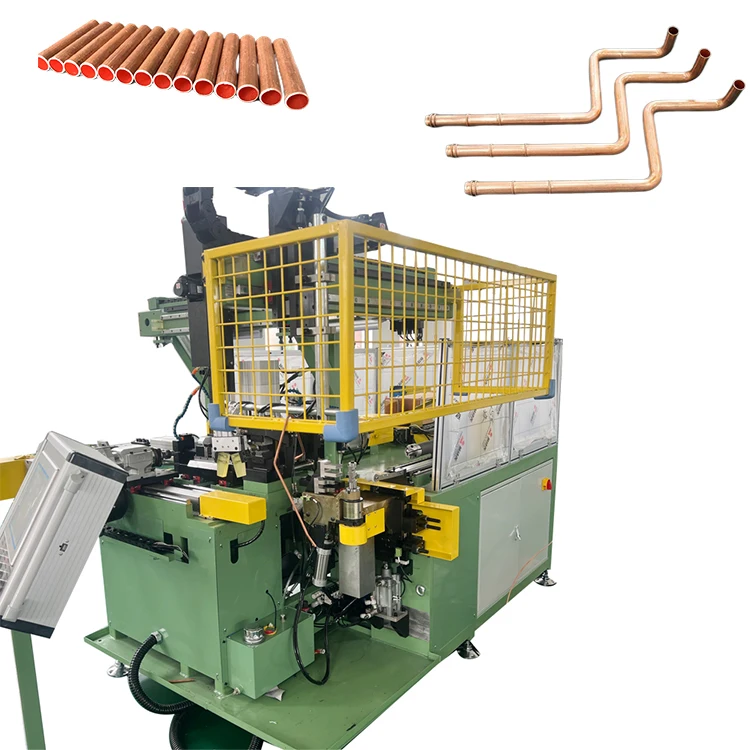

Integrated Tube Cutting Tube End Forming Bending and Cutting Machine

With many application cases, mature technology and experience, the solutions of chipless cutting of straight or coiled aluminium tubes, chipless cutting of soft copper tubes, chipless cutting of hard copper tubes, chipless cutting or sawing of steel and stainless steel tubes, capillary tube squeeze drum cutting and rounding have been successfully applied to many enterprises.
Big brands of core components, self-developed systems, scalable and customisable, support the production of combinations of matching methods.
Specification
Model
BO-20A2
Material / Metal Processed
Bass, Copper, aluminum tube etc
Material form
straight tube or coil tube
Machine Type
pipe and tube cutting machine
Product Dimensions
L3300xW1100xH1400mm
OD
Max 25mm
Thickness
Max thickness 1mm
Bending precision
0.2mm
Voltage
Three-phase five line 380V/50Hz/4.5Kw
Product weight
1500kgs
Extra function
Automatic loading& unloading devices
Machine Type
CNC Automatic
Free mold
1set
