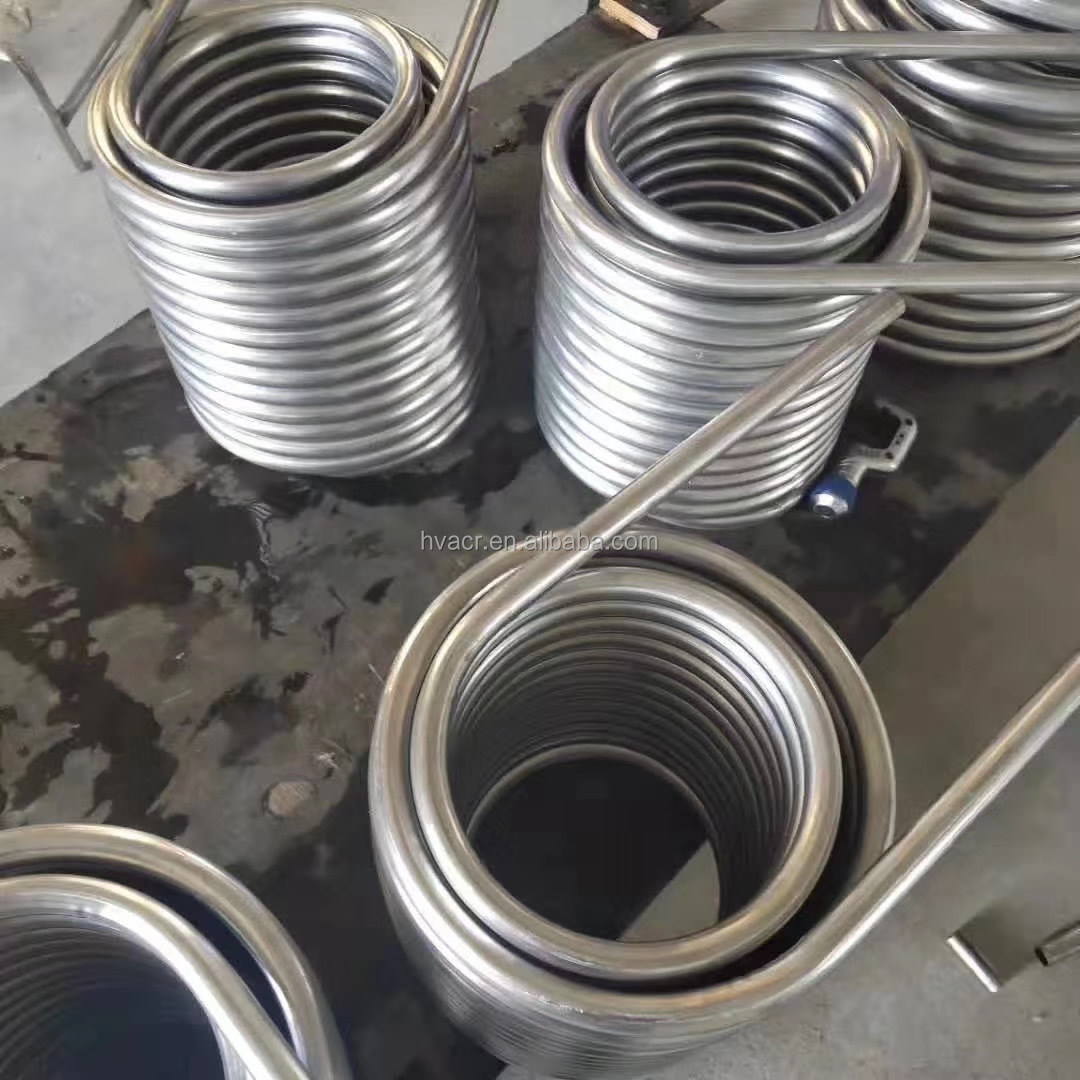

Spiral Helical Serpentine Round Coil Tube Bending Machine for Heat Exchanger Send to Turkey

CNC TUBE BENDER MACHINE

The CNC tube bender used to pipe (such as: brass, aluminum, iron pipe) into a spiral curve of the pipeline. Widely used in air conditioning, water cooler and other industries.
Model
T-16
Max bending diameter× Thickness（mm）
Φ16×2.0(Copper） or customized
Max bending R（mm）
R100
Min bending R（mm）
R10
Tube length(Max mm)
1200/ 2000mm
Integrated bending speed (seconds per bend)
3S/ Bend (does not include loading and unloading, changing the mold and changing the head)
Power
380V ±10% 50Hz
Total power
7.5Kw
Dimension (L×W×H (mm)
3200×1000×1500
Weight (Ton)
2.1
