Effectiveness-NTU Method: When to Use It Instead of LMTD

Heat exchanger calculations often start with one important question: which method should be used?

The Log Mean Temperature Difference (LMTD) method is widely used when inlet and outlet temperatures are already known. However, many real operating problems start with different information. A heat exchanger may already have a fixed size and heat transfer area, while one or both outlet temperatures are unknown.

This is where the Effectiveness-NTU method becomes useful.

The Effectiveness-NTU method, also written as the ε-NTU method, allows engineers to estimate heat transfer and outlet temperatures without knowing all terminal temperatures in advance. It is especially useful when checking the expected performance of an existing heat exchanger or studying how the unit may perform under different operating conditions.

This guide explains how the method works, when it should be used instead of LMTD, and how the two methods fit into practical heat exchanger design and evaluation.

What Is the Effectiveness-NTU Method?

The Effectiveness-NTU method describes heat exchanger performance by comparing actual heat transfer with the maximum heat transfer that could theoretically occur.

Instead of starting with a known temperature difference across the heat exchanger, the method uses several parameters that describe the thermal capacity of the fluids and the ability of the exchanger to transfer heat.

Three concepts are especially important: effectiveness, NTU, and heat capacity rate.

Heat Exchanger Effectiveness (ε)

Heat exchanger effectiveness is the ratio between the actual heat transfer rate and the maximum possible heat transfer rate.

It is written as:

ε = Q / Qmax

Where:

• ε = heat exchanger effectiveness
• Q = actual heat transfer rate
• Qmax = maximum possible heat transfer rate

Effectiveness always falls between 0 and 1 under normal heat exchanger operation.

For example, an effectiveness of 0.70 means the exchanger achieves 70% of the maximum possible heat transfer allowed by the inlet conditions.

A higher effectiveness generally means that the exchanger brings the fluid temperatures closer to their theoretical limits. However, higher effectiveness does not automatically mean that a design is better. Pressure drop, equipment size, material cost, fouling, and operating requirements must also be considered.

Number of Transfer Units (NTU)

The Number of Transfer Units describes the relationship between the heat transfer capability of the exchanger and the heat capacity rate of the fluid.

It is calculated as:

NTU = UA / Cmin

Where:

• U = overall heat transfer coefficient
• A = effective heat transfer area
• Cmin = smaller heat capacity rate of the two fluid streams

A larger NTU generally indicates more heat transfer surface or stronger heat transfer capability compared with the amount of heat carried by the fluid.

However, the relationship between NTU and effectiveness is not the same for every heat exchanger. Flow arrangement also matters.

Heat Capacity Rate and Capacity Ratio

The heat capacity rate of each fluid is calculated from mass flow rate and specific heat:

C = ṁ × cp

For the hot and cold streams:

Ch = ṁh × cp,h

Cc = ṁc × cp,c

The smaller and larger values are then identified:

Cmin = minimum of Ch and Cc

Cmax = maximum of Ch and Cc

The capacity ratio is:

Cr = Cmin / Cmax

Cr ranges from 0 to 1.

Both NTU and Cr are needed to determine heat exchanger effectiveness for most flow arrangements.

When Should the Effectiveness-NTU Method Be Used Instead of LMTD?

The main difference between Effectiveness-NTU and LMTD is not accuracy. The difference is usually the information available at the start of the calculation.

When all inlet and outlet temperatures are known, LMTD is often simple and direct. When outlet temperatures are unknown but exchanger size and thermal characteristics are available, Effectiveness-NTU is usually more convenient.

Several situations are especially suitable for the ε-NTU method.

When Heat Exchanger Outlet Temperatures Are Unknown

This is the most common reason for using Effectiveness-NTU.

The LMTD calculation depends on temperature differences at both ends of the heat exchanger. This normally requires both inlet and outlet temperatures.

If the outlet temperatures are unknown, the LMTD itself cannot be calculated directly.

An iterative calculation can still be used, but Effectiveness-NTU provides a more direct path.

With known inlet temperatures, flow rates, fluid properties, U, heat transfer area, and exchanger configuration, the ε-NTU method can estimate the heat duty first. The outlet temperatures can then be calculated from the energy balance.

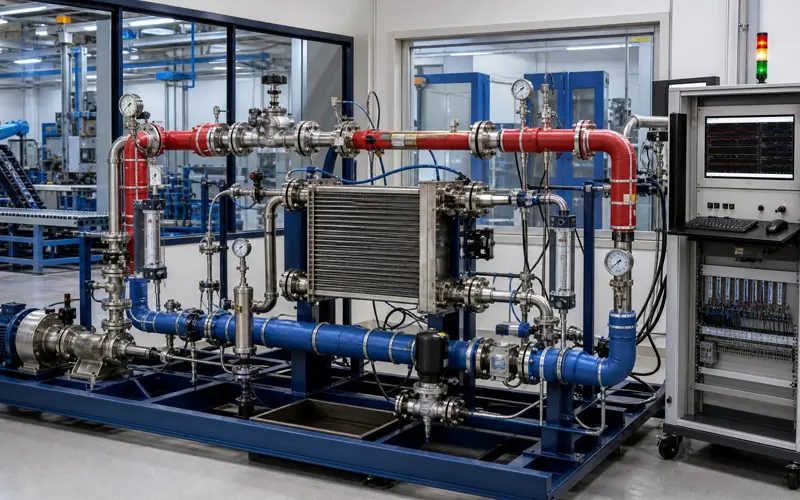

When Evaluating an Existing Heat Exchanger

Existing equipment usually has a fixed heat transfer area.

In this situation, the question is often not:

“How large should the heat exchanger be?”

Instead, the question is:

“How much heat can this exchanger transfer under these operating conditions?”

If U and A can be estimated, NTU can be calculated. Effectiveness can then be found according to the exchanger configuration.

This makes the method useful for equipment rating, performance checks, and preliminary troubleshooting.

When Operating Conditions Change

Heat exchangers rarely operate at only one exact design condition.

Flow rate may rise or fall. Inlet temperatures can change. Fluid properties may also vary with operating conditions.

These changes affect heat capacity rates and therefore change Cr and NTU.

The Effectiveness-NTU method makes it possible to recalculate expected heat duty and outlet temperatures under a new set of operating conditions without first knowing the new outlet temperatures.

This is useful when evaluating part-load operation or comparing several operating cases.

When Comparing Different Heat Exchanger Configurations

Effectiveness relationships are available for common flow arrangements such as parallel flow, counterflow, crossflow, and some shell-and-tube configurations.

This allows engineers to compare how different arrangements may perform under similar thermal conditions.

However, the correct effectiveness relation must always be used. A counterflow formula, for example, should not simply be applied to a crossflow unit.

How the Effectiveness-NTU Method Works Step by Step

Although the method may first appear more complex than LMTD, the calculation follows a clear sequence.

The goal is to move from known inlet conditions and exchanger characteristics to effectiveness, heat duty, and finally outlet temperatures.

Step 1 – Calculate the Heat Capacity Rates

First, determine the heat capacity rate for each fluid:

Ch = ṁh × cp,h

Cc = ṁc × cp,c

Mass flow rate and specific heat must use compatible units.

For example, if mass flow is expressed in kg/s and specific heat in kJ/(kg·K), the resulting heat capacity rate will be in kW/K.

Step 2 – Identify Cmin, Cmax, and the Capacity Ratio

Compare the two heat capacity rates.

The smaller value becomes Cmin and the larger value becomes Cmax.

Then calculate:

Cr = Cmin / Cmax

The fluid with Cmin normally experiences the greater temperature change because it has less thermal capacity per degree of temperature change.

Step 3 – Calculate the Number of Transfer Units

NTU is calculated from:

NTU = UA / Cmin

The overall heat transfer coefficient U should reflect the actual exchanger construction and operating conditions.

Using an unrealistic U value can create a much larger error than the choice between LMTD and Effectiveness-NTU itself.

Step 4 – Determine Heat Exchanger Effectiveness

Once NTU and Cr are known, the effectiveness can be calculated from a relation that matches the flow arrangement.

For a parallel-flow exchanger:

ε = [1 − exp(−NTU(1 + Cr))] / (1 + Cr)

For a counterflow exchanger where Cr is not equal to 1:

ε = [1 − exp(−NTU(1 − Cr))] / [1 − Cr × exp(−NTU(1 − Cr))]

When Cr equals 1 in a counterflow exchanger:

ε = NTU / (1 + NTU)

Crossflow and shell-and-tube exchangers may require different equations, charts, or calculation tools depending on the arrangement.

Step 5 – Calculate the Maximum Possible Heat Transfer

The theoretical maximum heat transfer is:

Qmax = Cmin × (Th,in − Tc,in)

This represents the maximum possible energy transfer based on the inlet temperatures and the fluid with the smaller heat capacity rate.

Step 6 – Calculate Actual Heat Transfer

Actual heat transfer is then calculated as:

Q = ε × Qmax

This value represents the predicted exchanger duty under the selected operating conditions.

Step 7 – Calculate the Outlet Temperatures

The outlet temperatures can now be found from the energy balance.

For the hot fluid:

Th,out = Th,in − Q / Ch

For the cold fluid:

Tc,out = Tc,in + Q / Cc

This final step shows one of the main advantages of the Effectiveness-NTU method: outlet temperatures are outputs of the calculation rather than required inputs.

How Flow Arrangement Affects Effectiveness-NTU Calculations

NTU alone does not determine heat exchanger performance.

Two exchangers with the same UA and the same fluid heat capacity rates can have different effectiveness values if their flow arrangements are different.

For this reason, exchanger configuration must be identified before selecting an ε-NTU relationship.

Parallel-Flow Heat Exchangers

In parallel flow, the hot and cold fluids enter the exchanger from the same end and move in the same direction.

The temperature difference between the fluids is greatest near the inlet and becomes smaller as the fluids move through the exchanger.

Parallel flow is simple to analyze, but for the same NTU and capacity ratio it generally provides lower effectiveness than a comparable counterflow arrangement.

Counterflow Heat Exchangers

In counterflow, the two fluids move in opposite directions.

This arrangement maintains a more useful temperature difference over the length of the exchanger.

As a result, counterflow can reach higher effectiveness than parallel flow under the same NTU and capacity ratio.

It is also one of the most common arrangements used to explain the Effectiveness-NTU method because the relationship between ε, NTU, and Cr can be expressed clearly.

Crossflow Heat Exchangers

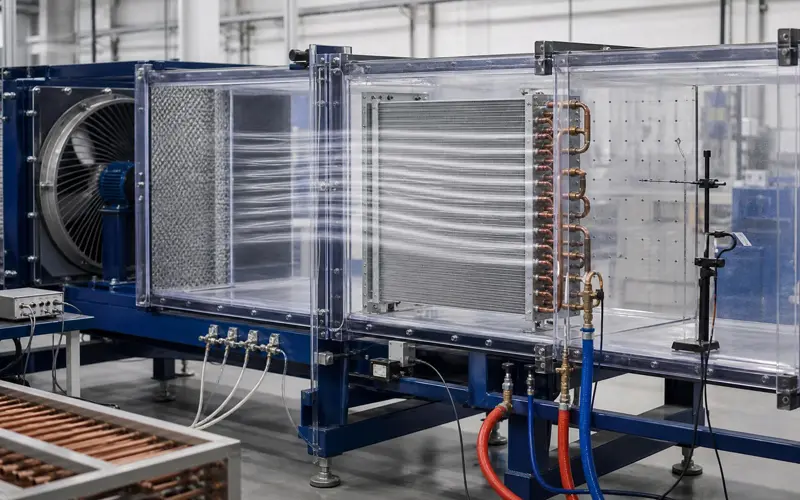

Crossflow arrangements are common in air-to-liquid and air-to-refrigerant applications.

The two fluid streams move across each other rather than in the same or opposite direction.

The effectiveness relationship depends partly on whether each fluid is mixed or unmixed in the direction perpendicular to its main flow.

Because several crossflow conditions are possible, the correct equation or chart should be selected for the actual construction.

Thermal design also affects production requirements. Manufacturers producing coils, radiators, condensers, and similar units may need suitable fin and tube heat exchanger machinery to maintain the tube geometry, fin spacing, and assembly consistency required by the design.

Shell-and-Tube Heat Exchangers

Shell-and-tube exchangers can include one or more shell passes and multiple tube passes.

Their flow pattern is therefore more complex than ideal parallel or counterflow arrangements.

Effectiveness relationships are available for common shell-and-tube configurations, but the correct equation must match the actual number and arrangement of passes.

For more complex systems, engineering software or established thermal design methods may be more practical than a simplified hand calculation.

Effectiveness-NTU vs LMTD: What Is the Difference?

Both methods are based on the same heat transfer principles. When the same assumptions, properties, and exchanger configuration are used correctly, they should describe the same thermal behavior.

The main difference is how the problem is approached.

Factor	Effectiveness-NTU	LMTD
Inlet temperatures	Required	Required
Outlet temperatures	Can be unknown	Usually known or assumed
Heat transfer area	Usually known	Often calculated
UA value	Usually required	U is normally required for sizing
Typical use	Performance prediction and rating	Sizing and design
Existing exchanger evaluation	Very convenient	May require iteration
New exchanger sizing	Possible	Often more direct
Flow arrangement	Requires correct ε-NTU relation	May require an LMTD correction factor

A practical way to separate the two methods is simple.

If the exchanger geometry or area is known and the goal is to predict performance, Effectiveness-NTU is often convenient.

If the required inlet and outlet temperatures are already specified and the goal is to calculate the required heat transfer area, the LMTD method is usually more direct.

Neither method is automatically more accurate than the other.

A Simple Effectiveness-NTU Calculation Example

A short example shows how the calculation moves from known exchanger data to unknown outlet temperatures.

Consider a counterflow heat exchanger with the following conditions.

Given Heat Exchanger Conditions

Hot fluid:

• Inlet temperature = 90°C
• Mass flow rate = 1.5 kg/s
• Specific heat = 4.0 kJ/(kg·K)

Cold fluid:

• Inlet temperature = 20°C
• Mass flow rate = 2.0 kg/s
• Specific heat = 4.2 kJ/(kg·K)

Heat exchanger:

• U = 300 W/(m²·K)
• A = 10 m²

First:

Ch = 1.5 × 4.0 = 6.0 kW/K

Cc = 2.0 × 4.2 = 8.4 kW/K

Therefore:

Cmin = 6.0 kW/K

Cmax = 8.4 kW/K

Cr = 6.0 / 8.4 = 0.714

Calculate NTU and Effectiveness

The UA value is:

UA = 300 × 10 = 3,000 W/K = 3.0 kW/K

Therefore:

NTU = 3.0 / 6.0 = 0.50

For a counterflow exchanger:

ε ≈ 0.35

The exchanger therefore transfers about 35% of the maximum possible heat under these simplified conditions.

Determine Heat Duty and Outlet Temperatures

Maximum heat transfer is:

Qmax = 6.0 × (90 − 20)

Qmax = 420 kW

Actual heat transfer is:

Q = 0.35 × 420

Q ≈ 147 kW

The hot-side outlet temperature is:

Th,out = 90 − 147 / 6

Th,out ≈ 65.5°C

The cold-side outlet temperature is:

Tc,out = 20 + 147 / 8.4

Tc,out ≈ 37.5°C

The outlet temperatures were therefore obtained without being known at the start of the calculation.

This is exactly the type of problem where the Effectiveness-NTU method is especially useful.

Common Mistakes When Using the Effectiveness-NTU Method

The calculation sequence is straightforward, but incorrect assumptions can still produce unrealistic results.

Most problems come from input data or from selecting the wrong effectiveness relationship.

Using the Wrong Effectiveness Relationship

Parallel flow, counterflow, crossflow, and shell-and-tube exchangers do not always use the same ε-NTU equation.

The physical flow arrangement should therefore be confirmed before calculating effectiveness.

Using the wrong relation can produce an apparently reasonable number that does not represent the actual exchanger.

Mixing Up Cmin and Cmax

NTU is based on Cmin:

NTU = UA / Cmin

The capacity ratio is also defined as:

Cr = Cmin / Cmax

Reversing these values changes both NTU and the effectiveness calculation.

A simple check is that Cr should never be greater than 1.

Using an Unrealistic Overall Heat Transfer Coefficient

The U value depends on several factors, including fluid properties, velocity, exchanger material, wall thickness, geometry, surface condition, and fouling.

Using a generic U value without checking whether it matches the application can make the final calculation unreliable.

For preliminary estimates, reference ranges may be acceptable. Final equipment design normally requires application-specific data.

Ignoring Fouling and Changes in Operating Conditions

Heat exchanger surfaces may become fouled during operation.

Deposits add thermal resistance and can reduce the effective overall heat transfer coefficient. Changes in flow rate can also affect both U and the fluid heat capacity rates.

A performance calculation based only on clean design conditions may therefore overestimate real operating performance.

For manufacturers, these thermal requirements eventually influence tube dimensions, fin geometry, spacing, forming accuracy, assembly, and production capacity. Matching design requirements with suitable industrial heat exchanger tube and fin manufacturing solutions helps turn the thermal specification into a repeatable production process.

When LMTD Is Still the Better Choice

The Effectiveness-NTU method is useful, but it should not replace LMTD in every calculation.

Suppose a new exchanger must cool a process stream from a specified inlet temperature to a specified outlet temperature. The cooling fluid also has known inlet and target outlet temperatures.

In that case, the heat duty and terminal temperature differences are already known.

LMTD can be calculated directly, and the required heat transfer area can then be estimated from:

Q = U × A × F × LMTD

Where F is the correction factor when the exchanger arrangement differs from ideal counterflow or parallel flow.

For this type of sizing problem, LMTD is often simpler.

The choice can therefore be summarized as:

• Known terminal temperatures and required exchanger size: LMTD is often the easier method.
• Known exchanger size and unknown outlet temperatures: Effectiveness-NTU is often the easier method.

The methods are complementary rather than competing.

FAQ About the Effectiveness-NTU Method

Several questions often appear when engineers first compare ε-NTU with LMTD.

Is the Effectiveness-NTU Method More Accurate Than LMTD?

Not by itself.

Both methods are based on the same energy balance and heat transfer principles.

Accuracy depends more on the quality of the input data, including U values, fluid properties, flow rates, geometry, fouling assumptions, and the correct treatment of the exchanger configuration.

If both methods are applied correctly to the same problem, they should produce consistent thermal results.

Can the Effectiveness-NTU Method Be Used for Shell-and-Tube Heat Exchangers?

Yes.

Effectiveness-NTU relationships are available for several common shell-and-tube arrangements.

However, multiple shell passes and tube passes create more complex flow behavior. The selected equation or chart must match the actual configuration.

More complex exchanger arrangements are often evaluated with dedicated thermal calculation software.

Can Effectiveness Be Greater Than 1?

No.

Effectiveness is defined as actual heat transfer divided by the maximum possible heat transfer:

ε = Q / Qmax

Under normal heat exchanger definitions, actual heat transfer cannot exceed this theoretical maximum.

An effectiveness value above 1 normally indicates an error in data, units, assumptions, or calculation.

What Does a Higher NTU Mean for a Heat Exchanger?

A higher NTU means the exchanger has greater heat transfer capability relative to Cmin.

This may result from a larger heat transfer area, a higher overall heat transfer coefficient, or a lower fluid heat capacity rate.

Effectiveness normally increases as NTU increases, but the improvement becomes smaller at higher NTU values.

Increasing surface area therefore does not produce unlimited gains. Equipment cost, size, pressure drop, and manufacturing complexity must also be considered.

Can the Effectiveness-NTU Method Be Used for Heat Exchanger Sizing?

Yes.

If the required effectiveness is known, the required NTU can be found from the appropriate ε-NTU relationship.

Area can then be estimated from:

A = NTU × Cmin / U

However, if all required inlet and outlet temperatures are already specified, the LMTD method is often a simpler starting point for sizing.

Choosing the Right Heat Exchanger Calculation Method

LMTD and Effectiveness-NTU are not competing methods. The right choice depends mainly on the information available.

LMTD is usually more direct when inlet and outlet temperatures are known and the required heat transfer area needs to be calculated. Effectiveness-NTU is often more practical when exchanger size or UA is known but outlet temperatures and actual heat duty still need to be predicted.

Accurate thermal calculations also need to be supported by reliable manufacturing processes. Heat exchanger manufacturers can explore heat exchanger production equipment and solutions from Heat Exchange or contact the team to discuss equipment requirements for tube processing, fin production, and heat exchanger manufacturing.
