Heat Exchanger Sizing 101: The LMTD Method Step-by-Step

Heat exchanger sizing starts with a simple question: how much heat must move from one fluid to another?

The answer is not based on physical dimensions alone. Engineers first need to understand the heat duty, fluid temperatures, flow rates, and available temperature difference. These values help estimate how much heat transfer surface is required.

One of the most common methods for this preliminary calculation is the Log Mean Temperature Difference, or LMTD, method.

The LMTD method connects heat duty, temperature difference, overall heat transfer coefficient, and heat transfer area. It can be used for many heating and cooling applications when the inlet and outlet temperatures are known.

This guide explains the LMTD method step by step and shows how a thermal calculation moves toward a practical heat exchanger design.

What Is the LMTD Method in Heat Exchanger Sizing?

The temperature difference between hot and cold fluids usually changes as the fluids move through a heat exchanger. For this reason, using only the inlet temperature difference or outlet temperature difference would not represent the full heat transfer process.

The LMTD method provides a more useful average driving temperature difference.

What Does LMTD Mean?

LMTD stands for Log Mean Temperature Difference.

It represents the effective temperature difference between the hot and cold fluids across the heat exchanger.

The basic heat transfer equation is:

Q = U × A × ΔTlm

Where:

• Q = heat duty, W
• U = overall heat transfer coefficient, W/m²·K
• A = heat transfer area, m²
• ΔTlm = log mean temperature difference, K or °C

For some exchanger arrangements, a correction factor is also required:

Q = U × A × F × ΔTlm

The larger the effective temperature difference, the more heat can normally be transferred through a given surface area, assuming the other conditions remain unchanged.

When Is the LMTD Method Used?

The LMTD method is especially useful when the following information is known:

• Hot-fluid inlet and outlet temperatures
• Cold-fluid inlet and outlet temperatures
• Fluid flow rates or required heat duty
• A reasonable estimate of the overall heat transfer coefficient

It is commonly used for preliminary sizing and thermal checks of counterflow, parallel-flow, shell-and-tube, plate, fin-and-tube, and other heat exchanger configurations.

When Is the LMTD Method Not the Best Choice?

The standard LMTD approach is less convenient when one or more outlet temperatures are unknown.

In that situation, the effectiveness-NTU method may be more suitable because it can predict exchanger performance without knowing both outlet temperatures in advance.

A single LMTD calculation may also be too simple for processes where fluid properties or the overall heat transfer coefficient change strongly through the exchanger. Some phase-change duties, for example, may need separate calculation zones rather than one average value for the entire unit.

What Information Is Needed Before Heat Exchanger Sizing?

A reliable calculation depends on reliable input data. Before calculating heat transfer area, engineers normally define the operating conditions on both sides of the exchanger.

Temperature is only part of the picture. Flow rate, fluid properties, pressure limits, and fouling conditions can also affect the final design.

Hot-Side and Cold-Side Inlet and Outlet Temperatures

Four temperatures are normally required:

• Hot-fluid inlet temperature, Th,in
• Hot-fluid outlet temperature, Th,out
• Cold-fluid inlet temperature, Tc,in
• Cold-fluid outlet temperature, Tc,out

These temperatures define the thermal program and are used to calculate the terminal temperature differences.

Small changes in target outlet temperature can have a large effect on exchanger size, especially when the hot and cold fluids approach each other closely.

Fluid Flow Rates and Thermal Properties

The required heat duty depends strongly on fluid flow rate and heat capacity.

For a single-phase fluid, engineers commonly need:

• Mass flow rate
• Specific heat capacity
• Density
• Viscosity
• Thermal conductivity

These properties may change with temperature. Preliminary calculations may use representative average values, while detailed thermal design usually requires more accurate property data.

Operating Pressure, Fouling, and Pressure Drop Limits

Thermal area alone does not define a practical heat exchanger.

The design must also consider:

• Maximum operating pressure
• Maximum operating temperature
• Allowable pressure drop
• Fluid cleanliness
• Fouling tendency
• Corrosion risk
• Cleaning requirements

These factors can affect material choice, tube or channel size, flow velocity, wall thickness, and the final heat exchanger geometry.

Step 1: Calculate the Required Heat Duty

Heat duty is the amount of heat that must be transferred between the two fluids.

For many single-phase heating or cooling applications, it can be calculated from the mass flow rate, specific heat, and fluid temperature change.

Heat Duty Formula: Q = ṁ × Cp × ΔT

The basic equation is:

Q = ṁ × Cp × ΔT

Where:

• Q = heat duty
• ṁ = mass flow rate
• Cp = specific heat capacity
• ΔT = inlet-to-outlet temperature change of the fluid

For example, if water enters the hot side at 90°C and leaves at 60°C, its temperature change is:

ΔT = 90 − 60 = 30°C

If the mass flow rate and specific heat are known, the required heat duty can then be calculated.

For evaporation, condensation, or other phase-change processes, an enthalpy-based calculation is often more appropriate:

Q = ṁ × Δh

Check the Energy Balance Between the Hot and Cold Sides

Ideally, the heat lost by the hot fluid should equal the heat gained by the cold fluid, apart from heat losses to the surroundings.

Therefore:

Qhot ≈ Qcold

For single-phase fluids:

ṁhot × Cp,hot × ΔThot ≈ ṁcold × Cp,cold × ΔTcold

This energy balance is an important early check. A large mismatch may indicate incorrect flow data, temperature data, fluid properties, or assumptions.

Step 2: Determine the Heat Exchanger Flow Arrangement

The way the two fluids move relative to each other changes the temperature profile inside the heat exchanger.

This directly affects how the two terminal temperature differences are calculated.

Counterflow Heat Exchangers

In counterflow, the hot and cold fluids move in opposite directions.

The terminal temperature differences are:

ΔT1 = Th,in − Tc,out

ΔT2 = Th,out − Tc,in

Counterflow generally makes effective use of the available temperature difference and can support a closer temperature approach than a simple parallel-flow arrangement.

Parallel-Flow Heat Exchangers

In parallel flow, both fluids enter the exchanger at the same end and move in the same direction.

The terminal temperature differences become:

ΔT1 = Th,in − Tc,in

ΔT2 = Th,out − Tc,out

The temperature difference is usually greatest at the inlet and becomes smaller toward the outlet.

Crossflow and Multi-Pass Heat Exchangers

Many real heat exchangers are not perfect counterflow or parallel-flow units.

Examples include:

• Crossflow fin-and-tube heat exchangers
• One-shell-pass, multiple-tube-pass exchangers
• Multi-pass shell-and-tube exchangers
• Complex plate or circuit arrangements

For these configurations, engineers may first calculate an ideal LMTD and then apply a correction factor, F, based on the actual flow arrangement.

Step 3: Calculate the Log Mean Temperature Difference

After the two terminal temperature differences are known, the LMTD can be calculated.

The formula accounts for the fact that the temperature difference is not normally constant from one end of the heat exchanger to the other.

The LMTD Formula

The equation is:

LMTD = (ΔT1 − ΔT2) / ln(ΔT1 / ΔT2)

Both terminal temperature differences must use a consistent flow arrangement.

The result represents the effective temperature driving force used in the basic thermal sizing equation.

Calculating ΔT1 and ΔT2 for Counterflow

For a counterflow exchanger:

ΔT1 = Th,in − Tc,out

ΔT2 = Th,out − Tc,in

Suppose:

• Hot fluid enters at 90°C
• Hot fluid leaves at 60°C
• Cold fluid enters at 20°C
• Cold fluid leaves at 44°C

Then:

ΔT1 = 90 − 44 = 46°C

ΔT2 = 60 − 20 = 40°C

The LMTD is:

LMTD = (46 − 40) / ln(46 / 40)

LMTD ≈ 42.93°C

Calculating ΔT1 and ΔT2 for Parallel Flow

For parallel flow:

ΔT1 = Th,in − Tc,in

ΔT2 = Th,out − Tc,out

The same four temperatures must not simply be copied from a counterflow calculation. The terminal temperatures have to be paired according to the real direction of flow.

This is one of the most common sources of error in manual LMTD calculations.

What If the Two Terminal Temperature Differences Are Equal?

If:

ΔT1 = ΔT2

the standard LMTD expression appears to create a 0/0 condition.

Physically, however, the result is simple. When the temperature difference remains constant through the heat exchanger:

LMTD = ΔT1 = ΔT2

There is no need to force the values through the logarithmic equation.

Step 4: Apply the LMTD Correction Factor When Needed

The basic LMTD calculation describes a defined ideal flow pattern. Real heat exchangers may have several passes, mixed flow, or crossflow.

A correction factor helps account for this difference.

Why Some Heat Exchanger Designs Need a Correction Factor

For configurations such as multi-pass shell-and-tube exchangers, the real temperature profile does not match perfect counterflow.

The heat transfer equation can therefore be written as:

Q = U × A × F × LMTD

Where F is the LMTD correction factor.

Its value depends on the flow arrangement and temperature program. It should be obtained from an appropriate correction chart, validated calculation method, or heat exchanger design software for the selected configuration.

How the Corrected LMTD Is Calculated

The effective corrected temperature difference is:

ΔTcorrected = F × LMTD

The required area then becomes:

A = Q / (U × F × LMTD)

When the correction factor is below 1, the effective temperature driving force becomes smaller. More heat transfer area may therefore be required for the same duty.

A correction factor should not be guessed. It must match the actual exchanger configuration.

Step 5: Estimate the Overall Heat Transfer Coefficient

The overall heat transfer coefficient, or U-value, describes how easily heat passes from one fluid to the other through the complete heat transfer surface.

It combines several thermal resistances into one design value.

What Is the Overall Heat Transfer Coefficient?

Heat must normally pass through several stages:

Hot fluid → surface → wall → surface → cold fluid

Resistance can come from:

• Hot-side convection
• Fouling on the hot side
• Tube, plate, or wall material
• Fouling on the cold side
• Cold-side convection

In simplified form:

1/U = convection resistance + fouling resistance + wall resistance + convection resistance

The exact equation depends on exchanger geometry and the area basis used in the calculation.

How Fluid Properties and Flow Conditions Affect U

The U-value is not a fixed number for a certain type of heat exchanger.

It can change with:

• Fluid type
• Temperature
• Viscosity
• Flow velocity
• Turbulence
• Surface geometry
• Phase change

For this reason, a value taken from a general reference can be useful for a first estimate, but it should not automatically be treated as a final design value.

How Wall Resistance and Fouling Affect U

Heat exchanger surfaces are rarely perfectly clean throughout their full service life.

Scale, oil, dust, biological deposits, or other contamination can add thermal resistance and reduce heat transfer performance.

Wall material and thickness also matter. A highly conductive metal offers less thermal resistance than a material with lower thermal conductivity, although corrosion resistance, pressure, manufacturing method, and cost must also be considered.

A practical design therefore balances thermal performance with expected operating conditions.

Step 6: Calculate the Required Heat Transfer Area

Once the heat duty, LMTD, correction factor, and estimated U-value are available, the preliminary heat transfer area can be calculated.

This is the point where the thermal requirement begins to translate into physical exchanger geometry.

Heat Exchanger Sizing Formula: A = Q / (U × F × LMTD)

Rearranging the basic heat transfer equation gives:

A = Q / (U × F × LMTD)

Where:

• A = required heat transfer area
• Q = required heat duty
• U = overall heat transfer coefficient
• F = LMTD correction factor
• LMTD = log mean temperature difference

All units must be consistent.

For example, when Q is expressed in watts, U in W/m²·K, and LMTD in K, the calculated area will be in square meters.

What the Calculated Heat Transfer Area Means

The result is a thermal surface area, not the outside dimensions of the finished heat exchanger.

The same required area can be created in many ways, such as:

• More tubes
• Longer tubes
• Larger plate area
• More plates
• Higher fin density
• Different tube circuits
• Different fin-and-tube geometry

The final arrangement must also meet pressure drop, velocity, mechanical, fouling, manufacturing, and space requirements.

Worked Example of Heat Exchanger Sizing Using the LMTD Method

A simple water-to-water counterflow example shows how the calculation works from beginning to end.

The values below are for explanation only. They are not universal design values for every heat exchanger.

Define the Design Conditions

Assume the following conditions:

Parameter	Value
Hot-water inlet temperature	90°C
Hot-water outlet temperature	60°C
Hot-water mass flow rate	1.2 kg/s
Cold-water inlet temperature	20°C
Cold-water outlet temperature	44°C
Specific heat of water used for this example	4.18 kJ/kg·K
Assumed overall heat transfer coefficient	800 W/m²·K
Flow arrangement	Counterflow
Correction factor	1.0

The assumed U-value is used only to demonstrate the calculation. A real design requires a U-value that matches the fluids, exchanger construction, flow conditions, and fouling allowance.

Calculate the Heat Duty

Using the hot side:

Q = ṁ × Cp × ΔT

Q = 1.2 × 4.18 × (90 − 60)

Q = 150.48 kW

The required heat duty is therefore approximately:

150.5 kW

Calculate the Terminal Temperature Differences

For counterflow:

ΔT1 = Th,in − Tc,out

ΔT1 = 90 − 44 = 46°C

And:

ΔT2 = Th,out − Tc,in

ΔT2 = 60 − 20 = 40°C

Calculate the LMTD

The LMTD is:

LMTD = (46 − 40) / ln(46 / 40)

Therefore:

LMTD ≈ 42.93°C

Select an Estimated Overall Heat Transfer Coefficient

For this example:

U = 800 W/m²·K

Again, this number is an assumption for demonstrating the sizing process. Detailed thermal design must determine whether it is appropriate for the actual fluids, velocities, surfaces, and operating conditions.

Calculate the Required Heat Transfer Area

For true counterflow in this simplified example:

F = 1

Therefore:

A = Q / (U × F × LMTD)

A = 150,480 / (800 × 1 × 42.93)

A ≈ 4.38 m²

The preliminary calculation therefore indicates a required heat transfer area of approximately:

4.4 m²

This does not mean the finished exchanger should simply be built with exactly 4.4 m² of nominal surface. Detailed design still needs to check geometry, pressure drop, fouling, manufacturing tolerances, performance margin, and other operating requirements.

From LMTD Calculation to Practical Heat Exchanger Design

An LMTD calculation provides an important thermal starting point, but a manufacturer cannot build a reliable heat exchanger from area alone.

The calculated duty must be translated into a structure that can be manufactured, assembled, tested, cleaned, and operated under real conditions.

Selecting the Heat Exchanger Type

Different exchanger types create heat transfer area in different ways.

Common choices include:

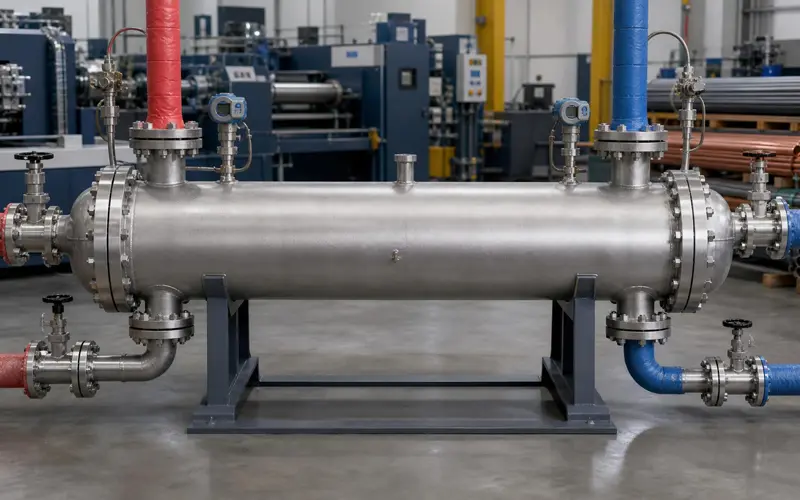

• Shell-and-tube heat exchangers

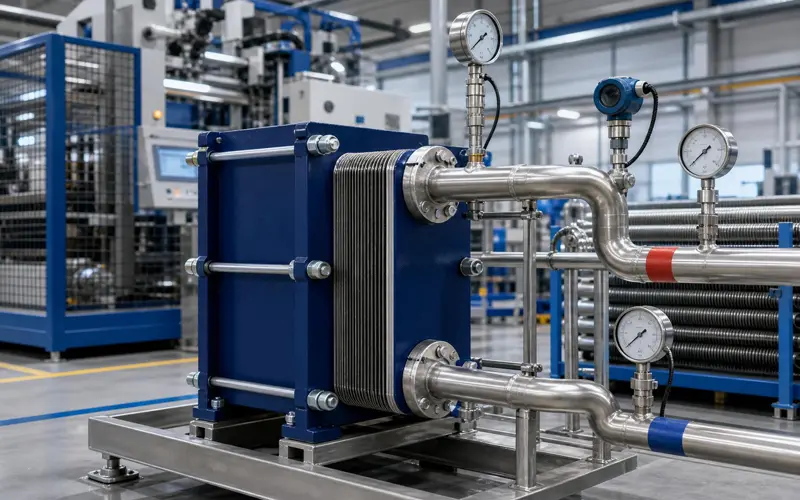

• Plate heat exchangers
• Fin-and-tube heat exchangers
• Air-cooled heat exchangers
• Microchannel designs

The correct choice depends on the fluids, temperatures, pressure, fouling tendency, available space, required capacity, maintenance method, and production needs.

Considering Tube, Plate, or Fin Geometry

After the required surface area is estimated, engineers must decide how that area will be created.

For a tube-based exchanger, this can involve:

• Tube diameter
• Tube length
• Number of tubes
• Tube pitch
• Number of passes
• Fin type and fin density

For manufacturers producing tube-and-fin components, these design choices also affect the required cutting, bending, end-forming, fin processing, assembly, and welding processes.

A suitable heat exchanger tube and fin manufacturing solution therefore needs to match both the component geometry and the required production capacity.

Checking Pressure Drop and Flow Velocity

Increasing velocity can improve convective heat transfer and may increase the U-value.

However, higher velocity also tends to increase pressure drop and pumping demand.

Very low velocity may reduce pressure drop but can also lower heat transfer performance and, in some services, increase the risk of deposits.

Thermal performance and hydraulic performance must therefore be checked together.

Considering Material, Fouling, and Cleaning Requirements

Material selection affects more than heat transfer.

The design must also consider:

• Corrosion resistance
• Fluid compatibility
• Working pressure
• Operating temperature
• Mechanical strength
• Formability
• Welding or brazing requirements
• Cleaning method
• Expected service life

A design that performs well when clean may not maintain the same performance after months or years of operation. Fouling allowance and maintenance access should therefore be considered before the geometry is finalized.

Common Mistakes in LMTD Heat Exchanger Sizing

The LMTD equation itself is short. Most sizing errors come from the assumptions and input data around it.

Several problems are especially common during preliminary calculations.

Using the Wrong Terminal Temperatures

Counterflow and parallel-flow exchangers pair terminal temperatures differently.

Mixing the two methods can produce an incorrect LMTD and therefore an incorrect surface area.

The actual flow arrangement should always be confirmed before ΔT1 and ΔT2 are calculated.

Using an Unrealistic U-Value

The U-value has a direct effect on the calculated area.

If U is assumed too high, the calculated exchanger can be too small. If it is assumed too low, the design may become larger than necessary.

Typical values can support early estimates, but final sizing should be based on the actual fluids, geometry, flow conditions, materials, and fouling conditions.

Ignoring Fouling Resistance

A clean exchanger and an exchanger after extended service may not have the same thermal performance.

Ignoring fouling can make a preliminary design look better on paper than it performs in operation.

Forgetting the LMTD Correction Factor

Multi-pass and crossflow arrangements may not achieve the same effective temperature driving force as ideal counterflow.

Where a correction factor is required, leaving it out can underestimate the necessary heat transfer area.

Treating the Calculated Area as the Final Equipment Size

The LMTD method estimates thermal area.

It does not directly determine:

• Overall exchanger dimensions
• Number of tubes or plates
• Tube wall thickness
• Fin pitch
• Header size
• Number of passes
• Pressure drop
• Mechanical strength

These values require further thermal, hydraulic, mechanical, and manufacturing design.

LMTD vs. ε-NTU for Heat Exchanger Sizing

LMTD and effectiveness-NTU are both established heat exchanger analysis methods, but they solve different types of problems.

The better method depends mainly on what information is already known.

When the LMTD Method Is More Suitable

LMTD is usually convenient when:

• Inlet temperatures are known
• Outlet temperatures are known or specified
• Heat duty can be calculated
• The objective is to estimate required heat transfer area

This makes it useful for sizing a heat exchanger to meet a defined thermal duty.

When the ε-NTU Method Is More Suitable

The effectiveness-NTU method is useful when:

• The exchanger size is already known
• The heat transfer area is known
• One or both outlet temperatures are unknown
• The objective is to predict exchanger performance

Neither method is automatically better in every case. They are different tools for different design questions.

FAQs About Heat Exchanger Sizing and the LMTD Method

The following questions often arise during early heat exchanger sizing and specification.

Does a Higher LMTD Mean a Smaller Heat Exchanger?

If heat duty and U-value remain the same, a higher effective temperature difference reduces the theoretical heat transfer area required by the basic equation.

However, exchanger size cannot be judged from LMTD alone. Pressure drop, flow velocity, fouling, geometry, materials, and manufacturing limits also affect the final design.

Can the LMTD Method Be Used for Both Heating and Cooling?

Yes. The method describes the temperature driving force between two fluids, so it can be applied to many heating and cooling duties when the required temperature data and design assumptions are suitable.

Is LMTD Different for Counterflow and Parallel Flow?

Yes.

The terminal temperatures are paired differently for counterflow and parallel flow. As a result, their temperature profiles and calculated LMTD values can differ.

Does the LMTD Method Account for Pressure Drop?

No.

The LMTD equation is a thermal calculation. Pressure drop must be calculated separately based on flow rate, fluid properties, channel or tube geometry, fittings, passes, and other hydraulic conditions.

A complete heat exchanger design must satisfy both thermal and pressure-drop requirements.

How Accurate Is Preliminary LMTD Heat Exchanger Sizing?

Its accuracy depends on the quality of the input data and assumptions.

A preliminary calculation can provide a useful estimate when temperatures, flow rates, fluid properties, U-value, and flow arrangement are reasonably defined.

Final equipment design normally requires more detailed thermal and hydraulic calculations, accurate fluid properties, geometry-specific correlations, fouling considerations, and verification of the selected construction.

Conclusion: Using the LMTD Method for Preliminary Heat Exchanger Sizing

The LMTD method provides a clear path from a required heat duty to an estimated heat transfer area.

The basic process is straightforward:

Calculate heat duty → define the flow arrangement → calculate terminal temperature differences → calculate LMTD → determine the correction factor if needed → estimate U → calculate heat transfer area.

The calculation, however, is only the beginning of a practical heat exchanger design.

Real equipment must also meet pressure drop, material, fouling, mechanical, maintenance, and manufacturing requirements. Tube dimensions, fin geometry, bending patterns, connection details, and production tolerances all affect how a thermal design is turned into a repeatable product.

For manufacturers moving from heat exchanger design to production, BOBO Machine provides heat exchanger manufacturing machinery for tube processing, fin production, finned-tube forming, bending, cutting, end forming, welding, and customized production lines. Equipment and process configurations can be matched to the required component design, production volume, and factory layout.
